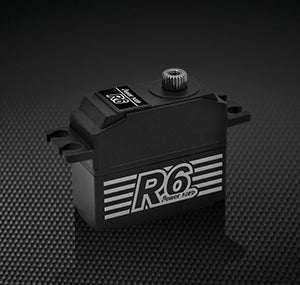

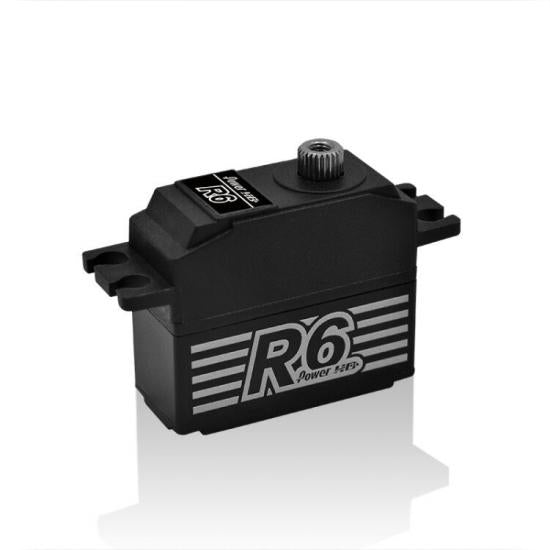

Power HD - R6 1/12 Pancar (0.08s/7.5kg/7.4V) Coreless Servo - PHD-R6
$55.00
Unit price
/
Unavailable
Power HD - R6 1/12 Pancar (0.08s/7.5kg/7.4V) Coreless Servo - PHD-R6 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sign up to be the first to know when it's here

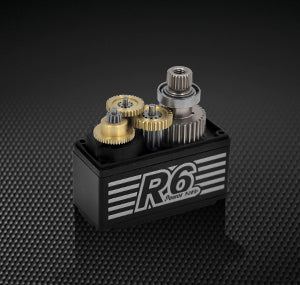

Power HD is the new R6 servo for 1/12th pan cars. The high voltage compatible servo out of Power HD’s new R-series is usable with 4.8V to 8.4V input, it pulls up to 7.5kg-cm of torque at a speed of down to 0.08s and weighs in at only 28.5g. A coreless motor, dual ball bearings and a mixed copper and aluminium geardtrain makes it super tough even when the on-track actions gets severe.
Specifications:
| Torque (6.0V) | 6.5 kg-cm (90.27 oz/in) |
| Torque (7.4V) | 7.5 kg-cm (104.16 oz/in) |
| Speed (6.0V) | 0.09 sec |
| Speed (7.4V) | 0.08 sec |
| Operating Voltage | 6.0 ~ 8.4 DC Volts |
| Weight | 28.5 g (1.01 oz) |
| Bearing Type | Ball Bearing x 2 |
| Motor Type | Coreless Motor |
| Gear Type | Copper & Aluminum |
| Operating Temperature | -20℃~60℃ |
| Working frequence | 1520μs / 333hz |
| Size | 35.0x15.1x29.5 mm (1.38x0.59x1.136 in) |
